After some time I am coming back to the Grasshopper tips and tricks series. Every software has this kind of easter eggs—a surprise or extra feature that is secretly hidden from the user. Coming usually unexpectedly with an extra bonus or a joke. Grasshopper does not contain many spoofs. However, it has some fully hidden functions. In this article and attached video, I want to show you some secrets that you might not have found yet. Check out the list of Grasshopper functions that you didn’t know.
Functions in Grasshopper that you didn't know.
1. Grasshopper elements with different functions.
Did you know that some elements in Grasshopper can have two different functions?

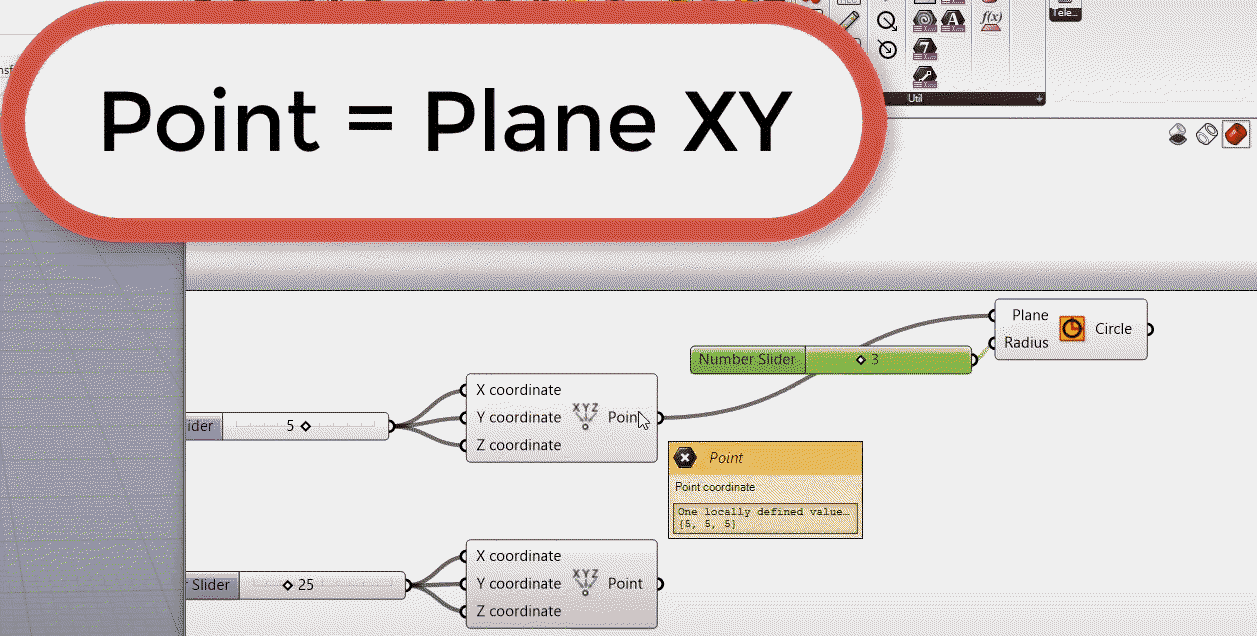

1A. Let’s start with the first element, which is the point.
In this exercise, we will create a circle, based on our point. In other words, we will create a circle where the centre is based on our point.
To do that, we are going to use create circle component. This component has a plane as input and radius to build the plane, we need to use the component XY plane, which requires an origin. Origin will be, in our case, the point. In that way, we connect the plane to the component and create our circle. We can skip the step by creating the plane. Connecting automatically point to the plane grasshopper will create the plane XY. So in this way, we can avoid one extra component.
Remember that this works just to XY planes.

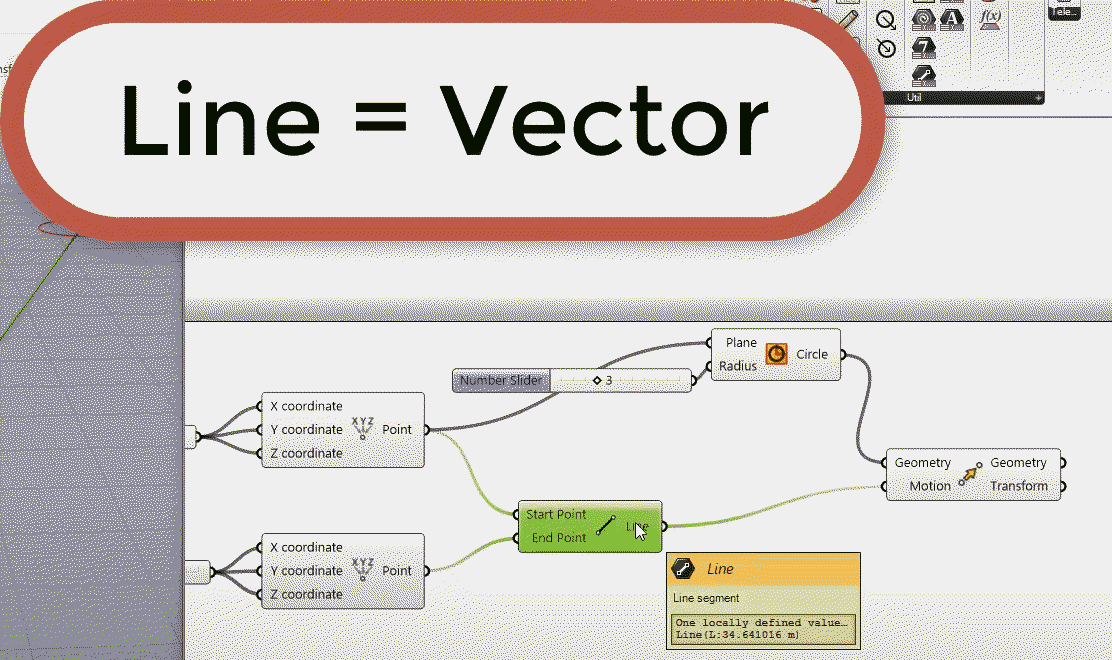

1B. The next element which has two functions is the line.
In the next exercise, we will move the circle from the previous example from one point to another. To do that, we will use the move component that needs motion. In this case, a motion will be a vector and the vector we can easily define by the point A starting point and point B – ending point. In green colour, it is possible to visualize how this vector looks like (Vector display component). So now we are using the move component. We are connecting our circle to geometry, and motion will be our vector. Standard procedure.
But actually, we can connect the line to the motion because the line is defined in the same way as a vector. We need the starting point and the ending point. In lots of situations, you can use just a straight line instead of creating a new vector.
Note that the order of defending line (direction) will influence the vector.

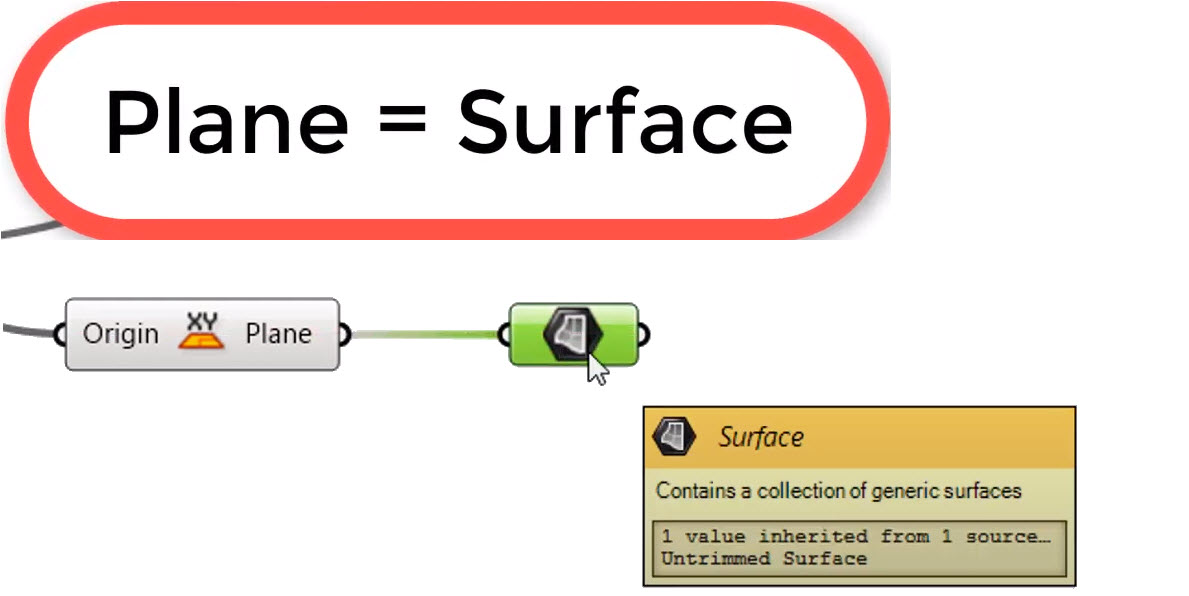

1C. Alright, and the third element is a plane.
The plane also has another function, and it can be a surface. When we connect the plane to the surface, it will create a brep so this brep can we deconstruct and see all the faces or edges. Let’s see how it looks like; when we zoom it to this surface, it will be like a square element one time.

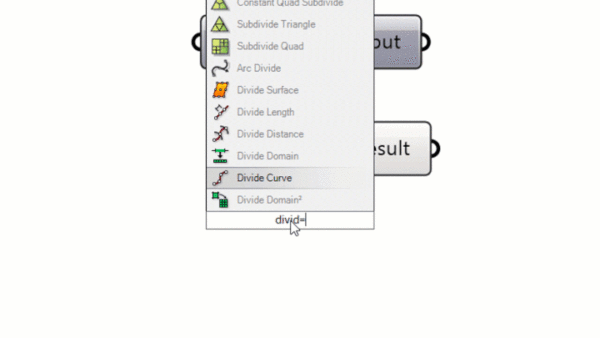

2. Quick Input
There is a quick way to set up the default number in your component.
Double-click on your canvas and choose your component from the list, put the equal sign and then the default value.
For example:
In command box, write Circle=50. Then the circle component will be created with the default value for the radius set to 50. This method works with also different components like:
- Divide curve,
- Divide length,
- List item,
- Split list,
- Shift list
- Cull index.
In addition, this method also works with mathematical components. So if you write addition=50 then the B value will be set to 50.
NOTE!
Try to not overuse this Grasshopper function. In this way you are hiding your input. Just hovering over input will show you what is connected. Debuging scripts with many embedded values become a nightmare!
NOTE! Try to not overuse this Grasshopper function.
In this way, you are hiding your input. Just hovering over input will show you what is inside. Debugging a script with many embedded values becomes a nightmare!
Just be careful with it!

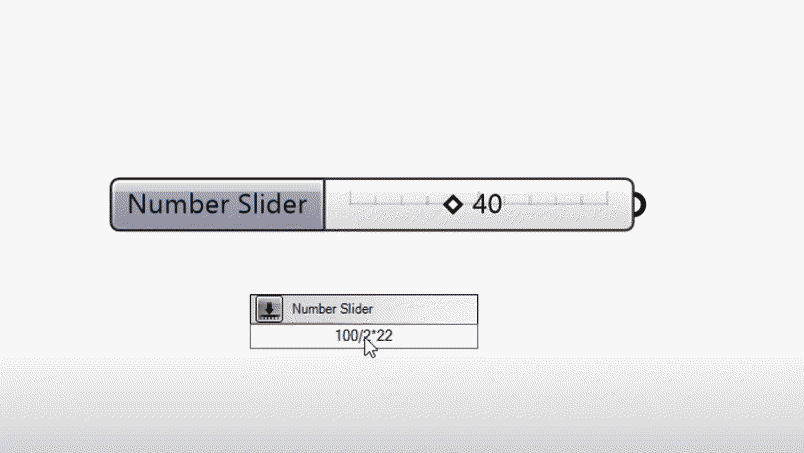

3. Fast calculations
When you double click on your canvas, you can write equations. So, for example, 20 plus 20, you will get the slider with the 40 value. You can write your complicated equation and speedily get your slider. Even you can write more complicated ones with all the brackets and all the mathematical rules, and then in the end, you will get the result of the equation.

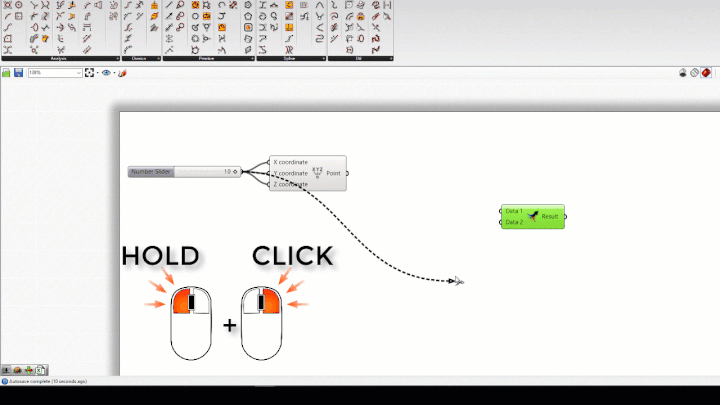

4. Multi-wiring
If you need to plug in one wire into multiple components, you can do so by right-clicking instead of releasing the left mouse button when plugging in a wire. Let’s check out the example. So hold your left mouse button and click the right button in that way you can easily and in a really fast way connect your one wire into several inputs hold your left mouse button and click the right one.
Next Grasshopper function worth to know

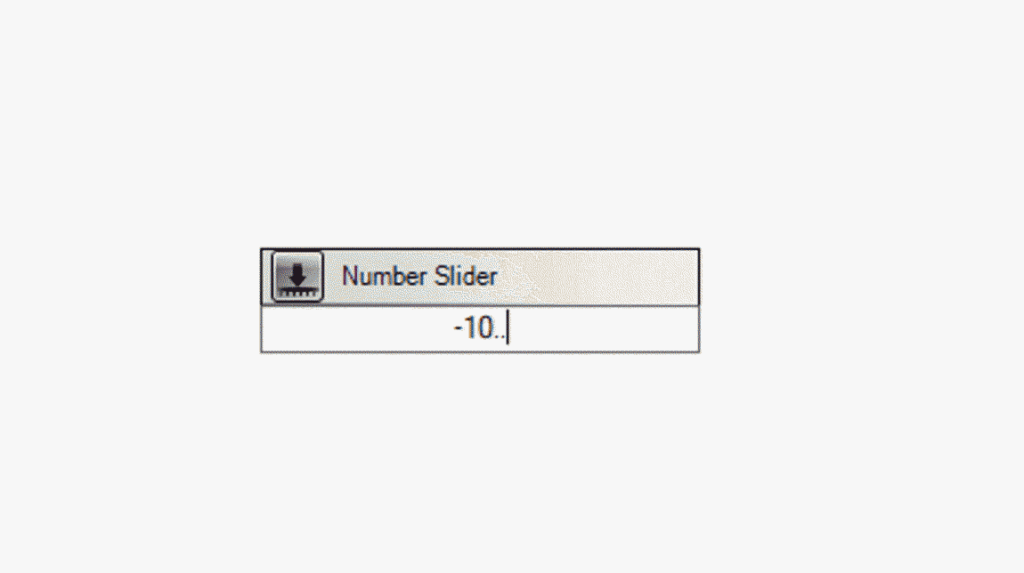

5. Minus Value
It’s hard to tell how many times I have tried to write minus value in slider automatically from the command box. Always subtraction component comes along. Every time I wanted to get a negative value I needed to use a negative component or go to the properties of the slider and change the value to minus by hand
But actually, it can be done much more accessible.
When you go to canvas, double click, write your minus value and then write double dot. In this straightforward way, you get minus value pretty cool, huh
Do you have any questions?
Write an email at [email protected]
I always write back !!
